Promarks BT-800

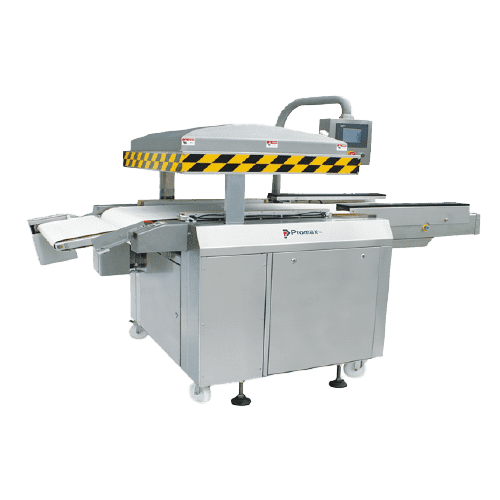

Promarks BT-800 Belted Chamber Vacuum Sealer

Automate your business with a high-quality belted chamber vacuum sealer. The conveyor belt allows you to load your product at one end, where it is then advanced into the vacuum cycle and then sent to the unloading portion of the machine for unload. These machines can also be used in conjunction with belted shrinking and drying tunnels for further automation.

The pressure-controlled vacuum ensures evacuation and gas flushing processes are consistent and airtight every time.

The Promarks BT-800 is made from stainless steel, features a Busch 305m3/h (12 hp) pump, (2) 32.3” seal bars, and a digital control panel that can store up to 20 different programs.

Promarks BT-800

Automate your business with a high-quality belted chamber vacuum sealer. The conveyor belt allows you to load your product at one end, where it is then advanced into the vacuum cycle and then sent to the unloading portion of the machine for unload. These machines can also be used in conjunction with belted shrinking and drying tunnels for further automation.

The pressure-controlled vacuum ensures evacuation and gas flushing processes are consistent and airtight every time.

The Promarks BT-800 is made from stainless steel, features a Busch 305m3/h (12 hp) pump, (2) 32.3” seal bars, and a digital control panel that can store up to 20 different programs.

Promarks BT-800

Specifications

Seal Bar Length: 2 x 32.3”

Lid safety ring protects the user during operation

Distance between the bars: 27.1”

Liquid cooled seal bars to help reduce seal wire failure

Chamber Height: 10.0”

Seal Element: 10mm flat seal

Busch 305m3/h (12.0 hp) vacuum pump

Inset plates for sealing height adjustment

Vacuum level controlled in percentage directly with microprocessor

Castors and leveling legs

Programmable touchscreen, pivoting digital control board (up to 20 programs)

Electricity: 208V / 3 Ph / 60 Hz

Stainless steel construction

Machine Dimensions: 91.5” x 48.5“ x 50.4”

Stainless steel lid

Machine Weight: 1,764 lbs

Automatic and manual modes available

Promarks BT-800

Options and Add-ons

Bi-active sealing (sealing from top & bottom for thicker or aluminum bags)

Knife cut-off

Custom conveyor system

Other Belted Vacuum Sealers

Models

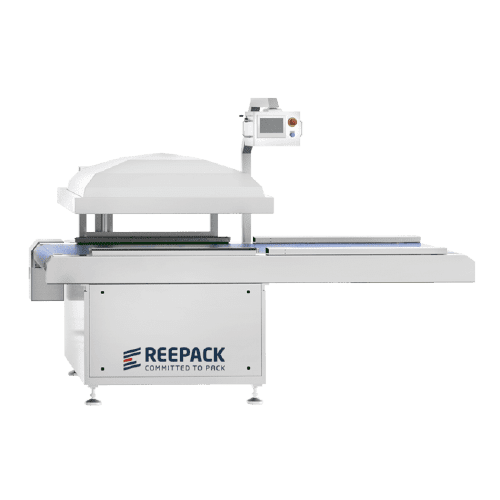

Reepack belted chamber vacuum sealer

Reepack BT-1350

Increase vacuum speed with an additional vacuum pump.

Reepack BT-1350

The Reepack BT-1350 is made from stainless steel, features 2 Busch 305m3/h (12 hp) pumps, 2 1350mm seal bars, and a digital control panel that can store up to 15 different programs.
Read more

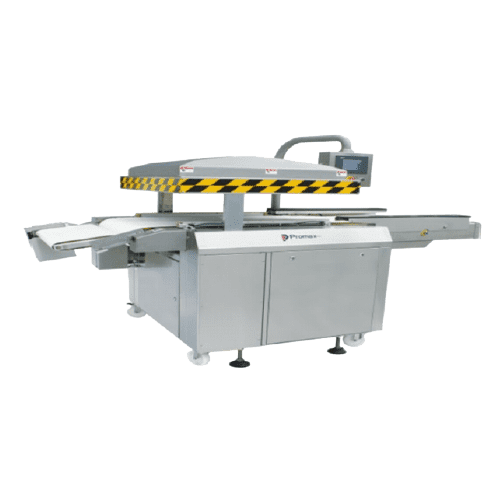

Promarks BT-1100 Belted Chamber Vacuum Sealer

Promarks BT-1100

44" seal bars for maximum sealing area.

Promarks BT-1100

The Promarks BT-1100 is made from stainless steel, features 2 Busch 305m3/h (12 hp) pumps, 2 44.1” seal bars, and a digital control panel that can store up to 20 different programs.
Read more
